Description

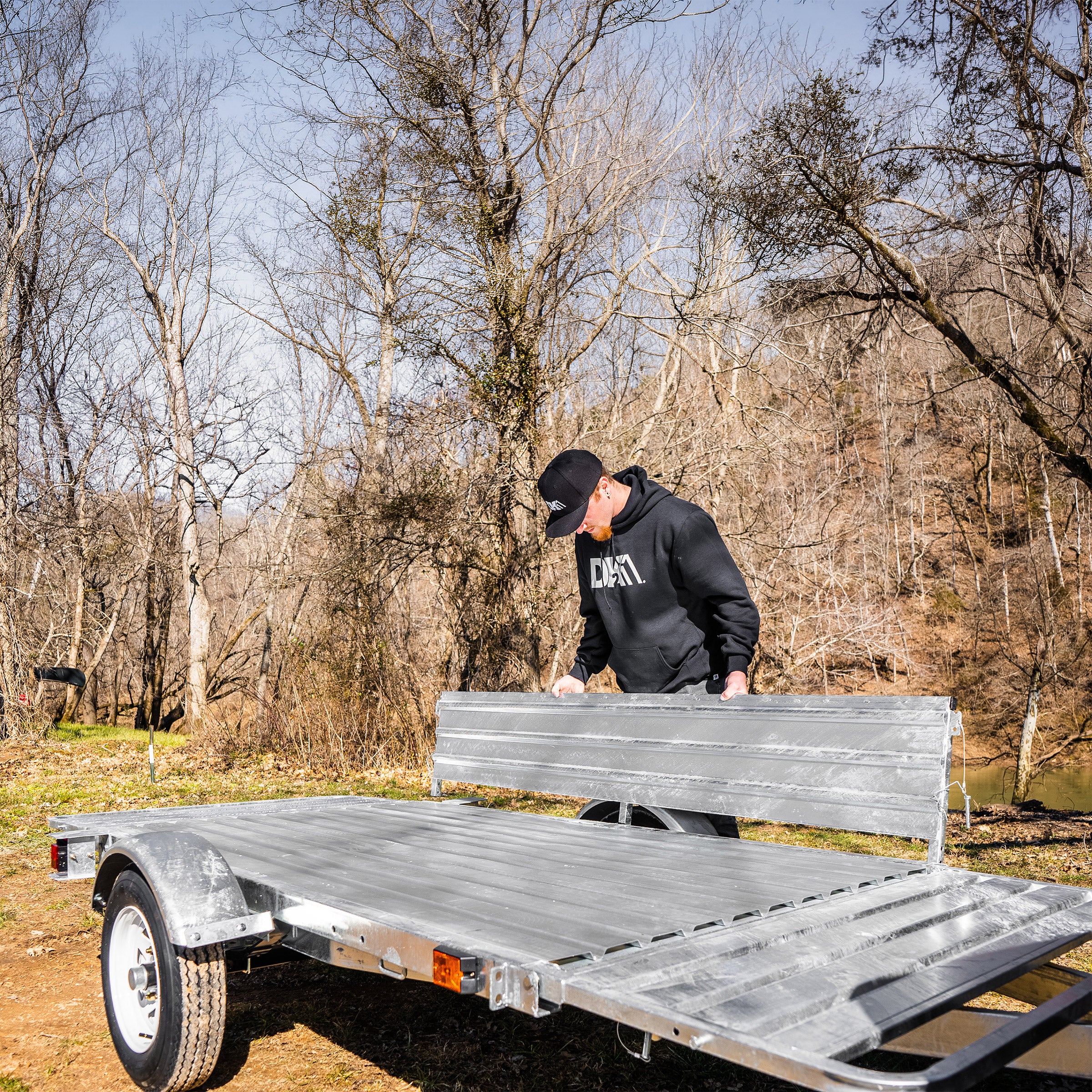

This single axle multi-utility trailer from DK2 by Marlon is one of the most versatile trailers on the market. Sitting on a solid square tube cambered axle with 12-inch, 6-ply bias tires and a load capacity of 1,637 pounds. When the front and back load-bearing gates are down, the trailer bed extends to nearly 12 feet in length, and the tilt/dump capability makes it easy to load or unload heavy items. Fabricated from 100% steel, all the components are reinforced, adjustable, removable and/or interchangeable. It also comes equipped with a 1,200 lb trailer jack for added convenience and support.
Features:
-
Constructed with fully-welded heavy-duty hot-dipped galvanized tubular steel tubular steel with a bed size of 4.5 ft. x 7.5 ft. that holds up to 1,637 pounds
-
Corrugated reinforced steel floor panel with 20″ ground clearance
-
24″ load-bearing corrugated steel drop gates that- when lowered- extends the trailer bed to 11.3 ft.
-
Solid square tubular steel cambered axle
-

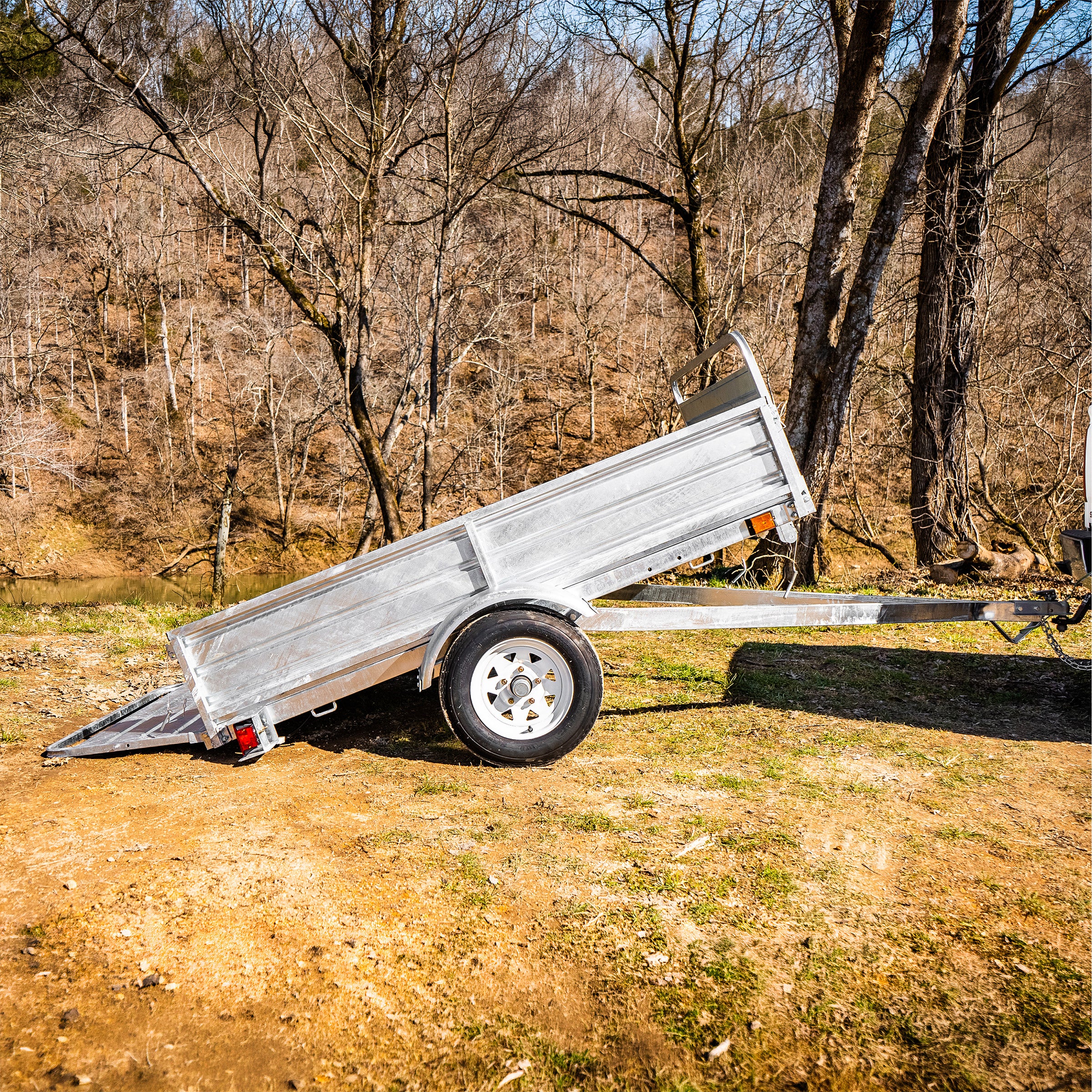

2-position axle-mounted dump bed with quick-release lock pin
-
D.O.T. 5.30-12 bias tires with a 5 x 4.5″ bolt pattern
-
Quick-connect D.O.T. LED lighting with side markers and heavy-duty taillight protectors
-

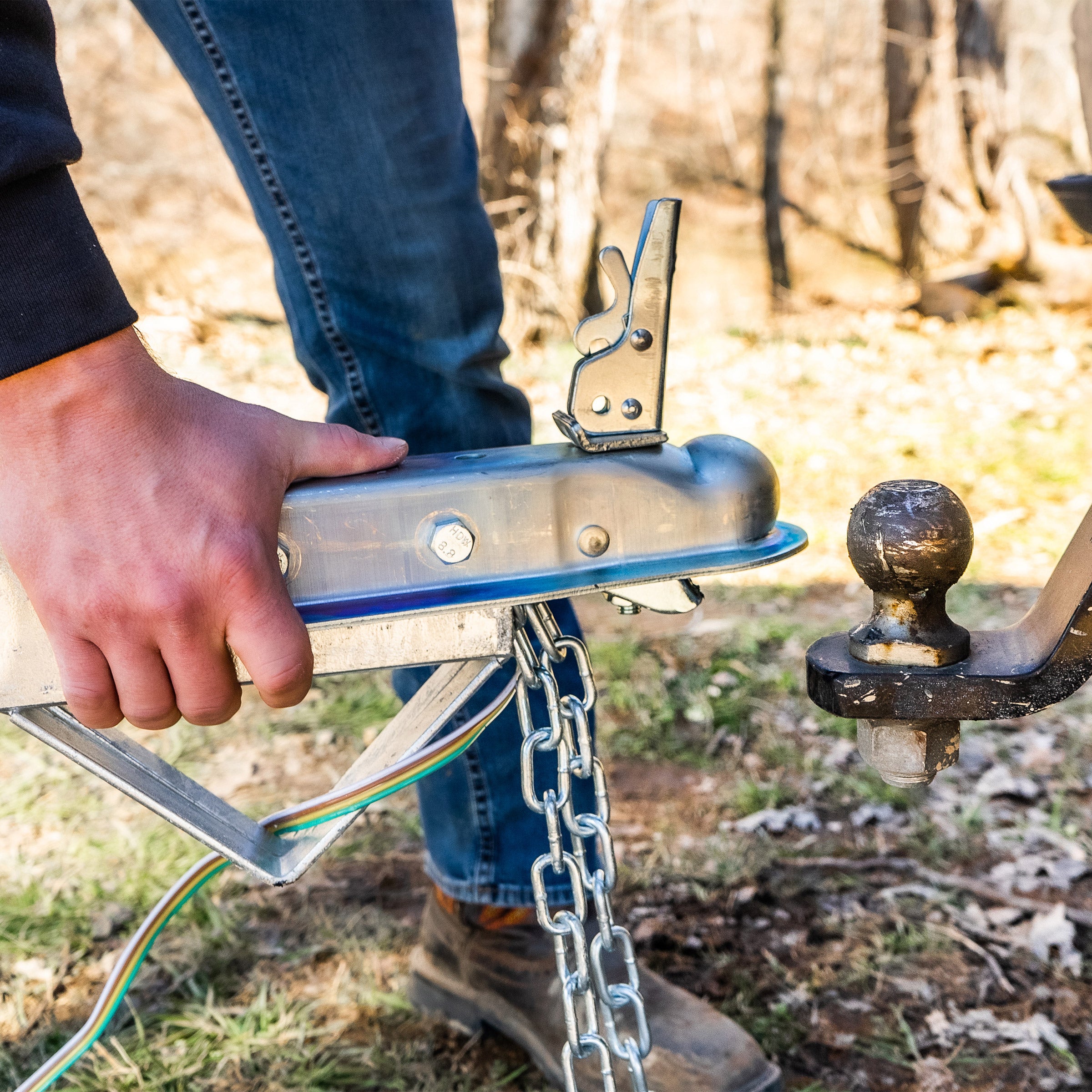

A-frame tow bar with 2″ ball coupler and a hitch height of 16″
-

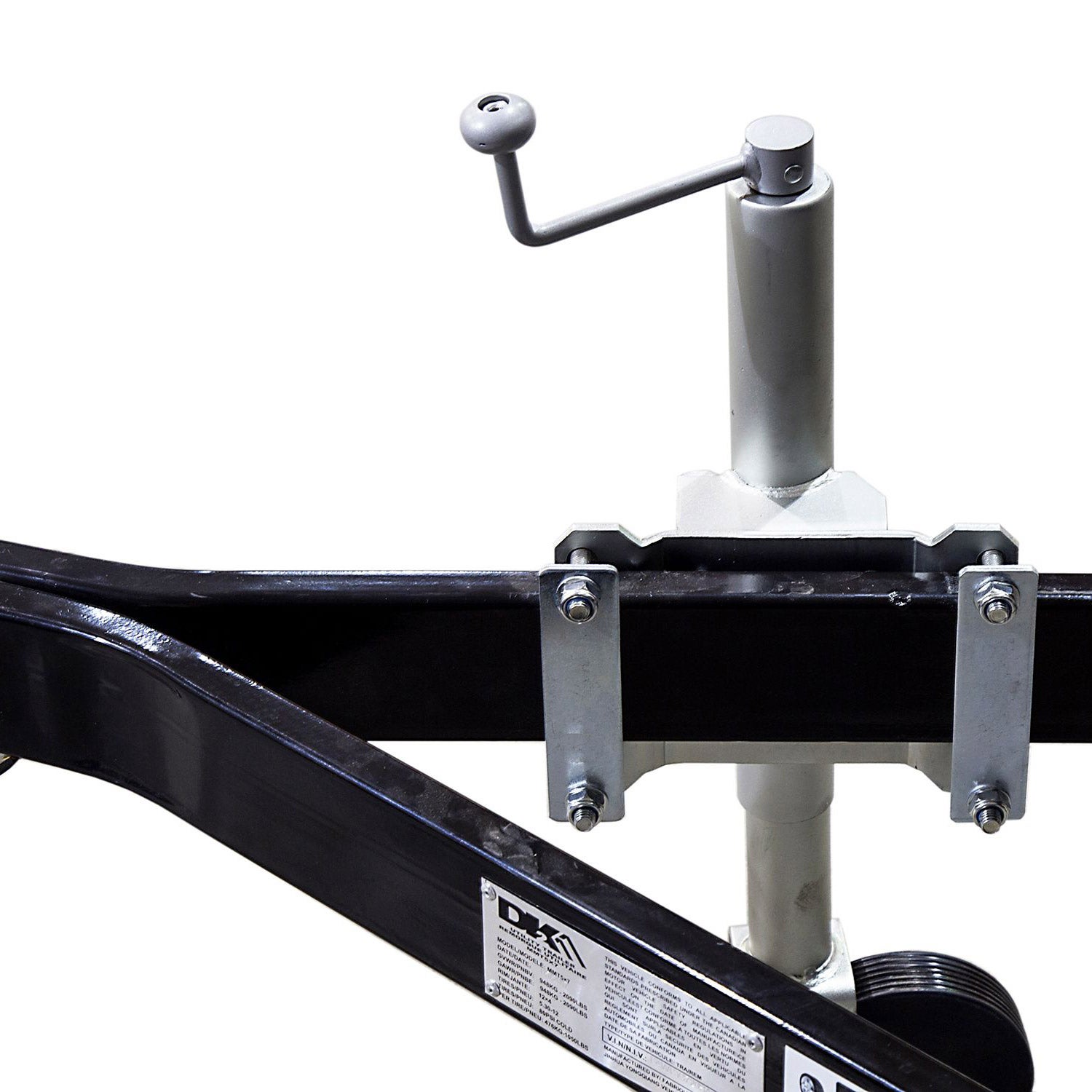

Comes with 1,200 lb trailer jack
-
ASSEMBLY REQUIRED
Includes:
-
Trailer components
-
Lights
-
Hardware
-
Tires
-
Trailer jack
Specifications:
-
Load capacity: 745 kg (1,639 lb.)
-
Hitch height: 40.6 cm (16 in.)
-
Bolt pattern: 5 x 4.5 in.
-
Tires : 5.3 x 12
-
Trailer dimensions (L x W): 2.16 m x 1.34 m (7.1 ft. x 4.4 ft.)
-
Extended dimensions (L x W): 3.7 m x 1.4 m (11.58 ft. x 4.4 ft.)
-
Weight: 204.6 kg (451 lb.)
Warranty: 1-year limited
Customer Service: Support@marlonproducts.com 1-888-277-6960
